Why Does My Equi-Spirit 2 Horse Bumper Pull Need Regular Axle Bearing Repacking?
The wheel bearings on your Equi-Spirit 2 Horse Bumper Pull endure immense stress during towing, especially with a fully loaded horse trailer weighing between 2,500 and 3,500 kg (5,500–7,700 lbs). These bearings support the entire trailer weight and rotate at highway speeds, generating significant heat. Without regular repacking, the grease degrades, water and road salt infiltrate, and the bearings can seize—causing wheel lockup, damaged spindles, or a dangerous trailer detachment. For a trailer used weekly for horse transport, repacking every 12 months or 12,000 miles (19,312 km) is non-negotiable. Neglecting this step can turn a routine journey into a costly roadside emergency, particularly when your horses are onboard. Proper bearing maintenance ensures smooth rolling, reduces tyre wear, and extends the life of your axles. Always reference your Equi-Spirit owner’s manual for specific intervals, as earlier models with EZ-Lube axles may differ from standard setups.
Which Tools and Supplies Are Essential for Repacking Equi-Spirit Bearings?
Before starting, gather a comprehensive kit. You will need a 3-tonne bottle jack or hydraulic floor jack and jack stands rated for at least 4,500 kg (10,000 lbs). Your Equi-Spirit 2 Horse Bumper Pull likely uses standard 2-inch (50.8 mm) straight axles. For bearing access, you require a hub nut socket (typically a 2-inch or 50.8 mm socket for Dexter axles common on Equi-Spirit trailers). Other essentials include a pry bar or seal puller, a brass drift punch, a clean rag, brake cleaner spray, and a bearing packer tool—or you can repack by hand using high-quality marine-grade wheel bearing grease meeting NLGI #2 specification. Purchase a new grease seal (inner and outer) for each wheel; do not reuse old seals, as they lose integrity. You may also need a torque wrench capable of 180–220 ft-lbs (244–298 Nm) for final castle nut tightening. If your Equi-Spirit has brake drums, you will need a hub/drum puller to separate it from the spindle. Lastly, keep a spare set of bearings (inner and outer cones and cups) specific to your trailer’s axle rating, which is typically a L68149/L68111 for 3,500-lb axles common on these models.
| Item | Specification | Currency Value (GBP £) | Why For Equi-Spirit |
|---|---|---|---|
| NLGI #2 Marine Grease | Water-resistant, high-temp | £8–£15 per 400g tub | Protects against road salt and moisture |
| Bearing Set (Inner + Outer) | L68149/L68111 cones + cups | £25–£40 per pair per wheel | Direct fit for 3,500-lb axles |
| Grease Seal (Inner) | 2.375” ID × 3.375” OD | £3–£6 each | Prevents grease leakage onto brakes |
| Hub Nut Socket | 2-inch (50.8 mm), 6-point | £12–£20 | Required for Dexter axle nuts |
| Torque Wrench | 180–220 ft-lbs capacity | £35–£80 | Ensures proper nut torque to spec |
How Do I Safely Jack and Support the Equi-Spirit 2 Horse Bumper Pull?
Park the trailer on level ground and chock the wheels on the opposite axle. Ensure the trailer is unhitched from your tow vehicle to allow independent lifting. For an Equi-Spirit 2 Horse Bumper Pull, place the jack under the frame rail just behind the spring shackle—not under the axle tube itself, as that can bend the axle or damage the suspension. Lift until the tyre clears the ground by at least 2 inches (5 cm). Immediately place a jack stand under the frame rail or axle bracket, ensuring it is rated for the trailer’s gross vehicle weight rating (GVWR), typically 3,500–5,000 lbs per axle for a 2-horse model. Double-check stability by gently rocking the trailer. Never work under a trailer supported only by a jack. Repeat for all wheels you plan to service; you may do both sides on one axle simultaneously but always ensure stands are under solid frame points. For safety, also engage the trailer’s parking brake if equipped, though many Equi-Spirit models use a breakaway cable system—disconnect it briefly if needed to avoid tension.
Step-by-Step: How to Remove, Clean, and Repack Equi-Spirit Bearings?

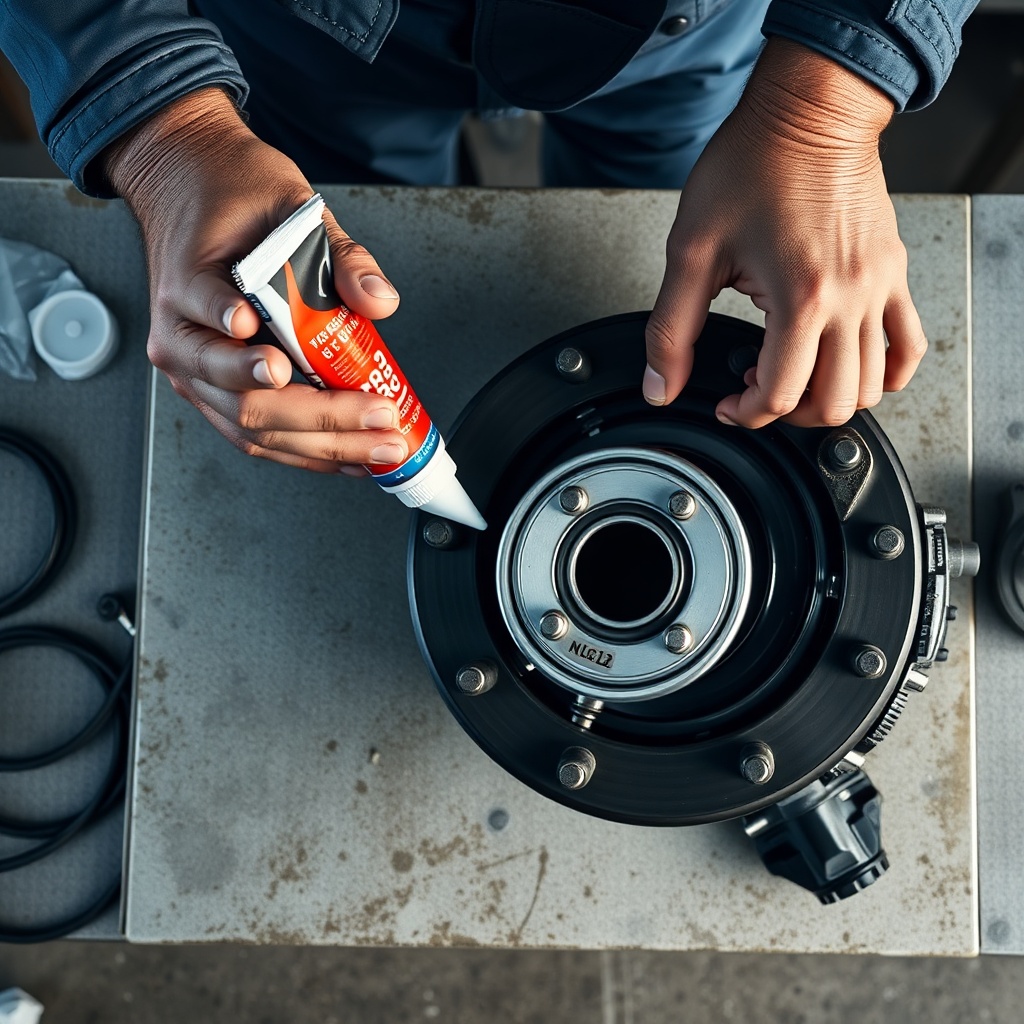

Begin by removing the dust cap using a pry bar or a gentle tap from a hammer and chisel. Next, remove the cotter pin from the castle nut and discard it. Using your socket and a breaker bar, loosen the castle nut. Slide the hub/drum assembly off the spindle, catching the outer bearing and washer as it comes free. Place the assembly on clean newspaper or a drip tray. Remove the inner bearing and grease seal; you may need to tap the seal out from the inside using a drift punch. Wipe all parts with brake cleaner and inspect bearing cones (the rollers) for pitting, heat discolouration, or flat spots. If damage is present, replace the full bearing set including the cup (race) in the hub. To repack, use a bearing packer tool for efficiency; otherwise, smear grease into the palm of your hand and press the bearing’s large end into the grease until it extrudes from the opposite side, rotating the bearing to fill all rollers. Do not overfill—grease expansion during operation can push out the seal. Apply a thin layer of grease to the spindle and inside the hub cavity (but not the brake drum surface). Install a new inner seal by pressing it evenly—using a seal driver or a large socket that matches the seal’s outer diameter. Reassemble by placing the hub on the spindle, then the outer bearing, washer, and new castle nut. Torque the nut to 180–220 ft-lbs while rotating the hub to seat the bearings. Then back off the nut ¼ turn, re-torque to 50 ft-lbs, and install a new cotter pin. Finally, pack the dust cap with a small amount of grease (do not fill completely) and tap it into place.
How Often Should I Inspect the Brake System During Bearing Repacking?
Every time you repack bearings on your Equi-Spirit 2 Horse Bumper Pull, seize the opportunity to inspect the electric brakes. Remove the hub/drum together and check the brake magnet for wear—the friction surface should not be below 3/16 inch (4.8 mm) thickness. Examine the brake shoes for lining thickness; replace if down to 1/16 inch (1.6 mm) or less. Look for grease contamination on the drum interior—if present, your inner seal is leaking, requiring immediate replacement. Check the wire connections for fraying, corrosion, or melting. Clean the drum mating surface with brake cleaner and a fine emery cloth to remove glazing. Use a brake adjustment tool to set the shoes to a slight drag on the drum when rotated by hand. This adjustment ensures optimal braking response and reduces stopping distances, crucial for horse safety. For detailed guidance on calibrating your brake controller after maintenance, consult our Equi-Spirit 2 Horse Bumper Pull Electronic Brake Controller Setup: Calibration and Testing article.
What Common Mistakes Should I Avoid When Repacking Equi-Spirit Bearings?
One frequent error is overgreasing the hub cavity. Filling the cavity entirely causes grease to migrate onto the brake shoes, reducing braking efficiency and potentially causing a fire hazard from friction. A thin coating inside the hub is sufficient. Another mistake is using the wrong grease type—automotive chassis grease lacks the water resistance needed for trailer bearings. Stick to NLGI #2 lithium-complex or marine-grade grease. Do not reuse old grease seals; they often develop hairline cracks after removal. Also, avoid mixing grease brands or types, as incompatibility can cause separation. A common oversight is failing to check and grease the axle spindle’s thrust washer—this prevents galling of the spindle end. Finally, always torque the castle nut properly. Overtightening will preload the bearings excessively, leading to overheating and premature failure. Under-tightening causes wheel wobble. Follow the two-step torque process: high torque to seat, then back-off and final torque. If you need help with proper hitch setup to reduce axle stress, see our Equi-Spirit 2 Horse Bumper Pull Hitch Weight Distribution Guide: Setup for Stability.
What Owners Say About Bearing Maintenance on Their Equi-Spirit Trailers
Equi-Spirit owners in the UK appreciate the accessibility of the bearing system. Many report that after initial repacking, the hubs run noticeably cooler on long motorway hauls. One owner from Yorkshire noted that after following a 12-month repack schedule, they extended the life of their bearings beyond 60,000 miles. Others praise the straightforward design—no special tools beyond a 2-inch socket are required for Dexter axles. However, some caution that the dust caps can be stubborn to remove; a little penetrating oil and a light tap with a hammer often helps. The consensus is that professional bearing repacking costs around £80–£120 per axle at a trailer shop, but DIY repacking with quality grease saves significant money and gives peace of mind. Owners also stress that properly repacked bearings reduce vibration, which lessens stress on horses during travel. For seasonal storage advice to protect your bearings and brakes, read our Equi-Spirit 2 Horse Bumper Pull Winter Storage Tips: Preventing Mold and Corrosion.
Frequently Asked Questions
Q1: Can I repack bearings with the wheels still on the trailer?
No. You must remove the wheel, hub, and drum assembly to clean and repack the bearings properly. Jacking and supporting the trailer is essential for safe access.
Q2: What torque specification applies to the castle nut on Equi-Spirit 2 Horse Bumper Pull?
The standard torque is 180–220 ft-lbs (244–298 Nm) for 3,500-lb Dexter axles. After torquing, back off ¼ turn, then retorque to 50 ft-lbs and insert a new cotter pin.
Q3: How can I tell if my inner seal is leaking before it causes damage?
Inspect the inside of the brake drum and shoes. Any oily residue, dark staining, or slippery feel indicates grease contamination from a leaking seal. Also check the ground near the wheel for grease drips.
Q4: Is there a specific brand of grease recommended for Equi-Spirit trailers?
Lucas Oil Red ‘N’ Tacky, Valvoline Palladium, or any NLGI #2 marine-grade lithium-complex grease works well. Avoid cheap multipurpose greases with low dropping points.
Q5: Should I replace the brake magnet during bearing repacking?
Only if the magnet’s friction surface is worn below 3/16 inch (4.8 mm) or shows uneven wear. Measure with a caliper. Replacement is part of major brake service but not every bearing repack.
Q6: What are the legal requirements for bearing maintenance in the UK?
UK law requires all trailers over 750 kg MAM to be roadworthy. While no specific timeline is mandated, any wheel bearing failure causing an accident can result in penalties. Check our Equi-Spirit 2 Horse Bumper Pull Towing Laws: State-by-State Requirements for comprehensive rules.
